Stage Outdoor 640 serie

Cabinet Size: 640x640X75mm
Pixel Pitch: 5/6.66/8/10mm
Brightness Intensity: 5000CD/m²
IP Rating (front/back): IP65
Aue.Power Consumption: 650/510/480/324Wm²

GET A QUOTE

Parameters

Module Specifications
Part Number	P5	P6.66	P8	P10
Pixel Pitch	5mm	6mm	8mm	10mm
Module size	320x160mm	320x160mm	320x160mm	320x160mm
LED Configuration	SMD	SMD	SMD	SMD
Cabinet Specification

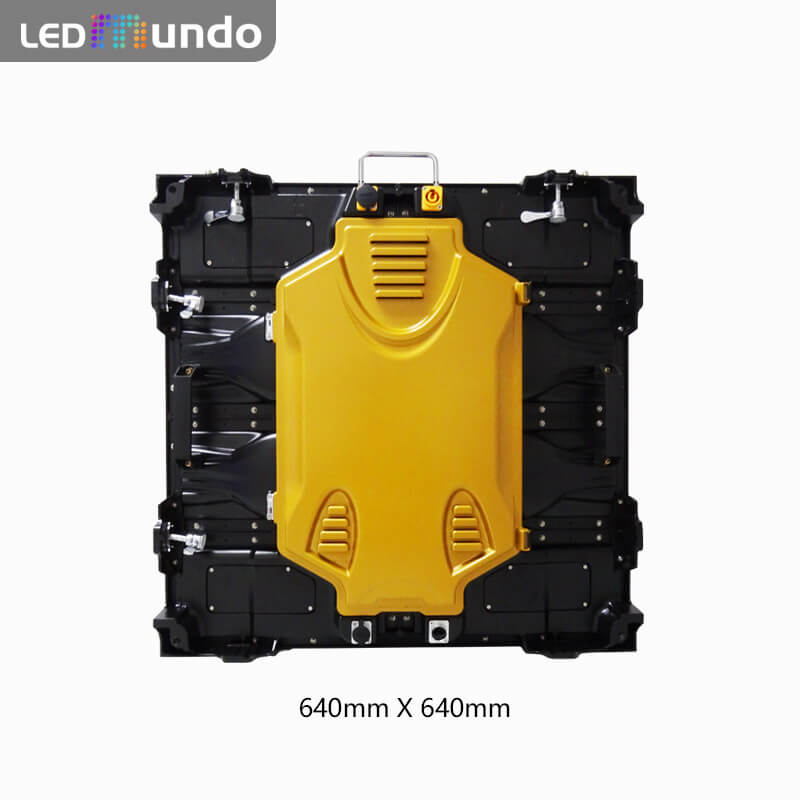

Cabinet Size	640x640X75mm	640x640X75mm	640x640X75mm	640x640X75mm
Cabinet Weight	12KG	12KG	12KG	12KG
Main Parameter
Pixel Density	40000dot/m²	22545dot/m²	15625dot/m²	10000dot/m²
Brightness Intensity	≥5000CD/m²	≥5000CD/m²	≥5000CD/m²	≥5000CD/m²
Viewing Angle (H/V)	140°/140°	140°/140°	140°/140°	140°/140°
View Distance	＞5m	＞6m	＞8m	＞10m
Gray Scale	14bit	14bit	14bit	14bit
Display Scale	16.7M	16.7M	16.7M	16.7M
Refresh Rate	≥1000Hz	≥1000Hz	≥1000Hz	≥1000Hz
IP Rating(front/back)	IP65	IP65	IP65	IP65
Aue.Power Consumption	650W/m²	510W/m²	480W/m²	324W/m²
Refresh Frequency	≥1920HZ	≥1920HZ	≥1920HZ	≥1920HZ
Gamma Correction	-5.0~+5.0	-5.0~+5.0	-5.0~+5.0	-5.0~+5.0
Environmental	OUTDOOR	OUTDOOR	OUTDOOR	OUTDOOR
Brightness Adjustment	0-100 levels adjustable
Control Mode	Synchronous display with control PC by DVI
Support Input	Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI
Operation Power	AC100~240 50/60HZ
Operating Temperature	-20℃~+50℃
Operating Humidity	10~95%RH
Operating Life	100,000hours

Advantages:

1. Intelligent control:
Seamless connection with high flatness and soft image.

2. Slim and light structure design for convenient assemble:
Super thin and light-weight cabinet, easy to install and transport, the space for the whole screen is greatly saved with thickness decrease.
Aluminum die-casting cabinet, automatic heat dissipation, and low power consumption.
Accurate and fast installation with buckled cabinet design for different applications efficiently.

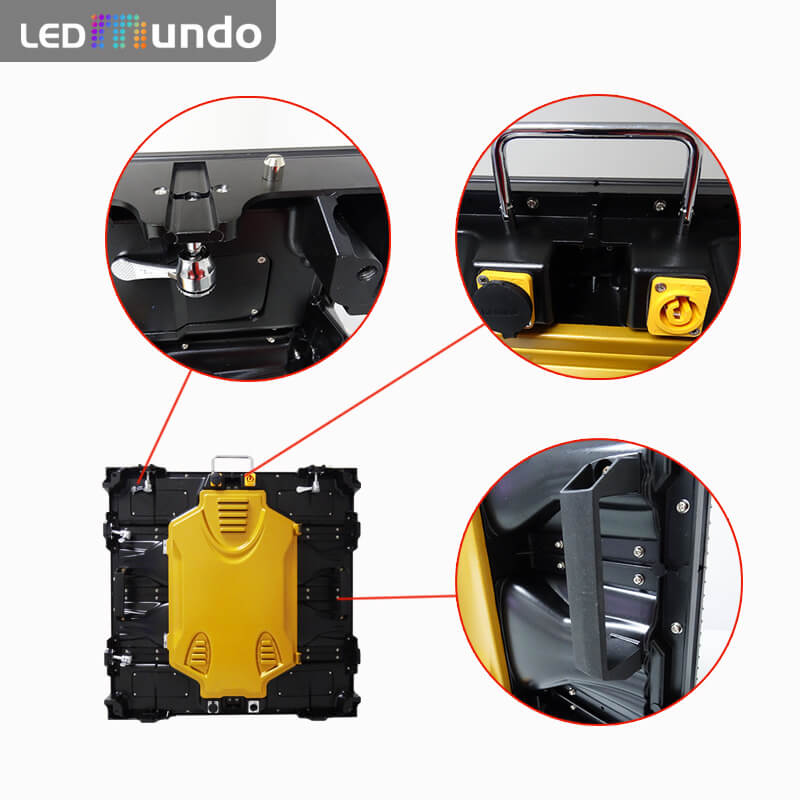

Buckle fixing design makes fast installation and dismantlement with force balance for both stacking and hanging use.

3. Safe and reliable with excellent quality:
Professional and standard aviation plug with a high-quality guarantee.
High stability and reliability with an integrated circuit.
Water proof with IP65 protection level.

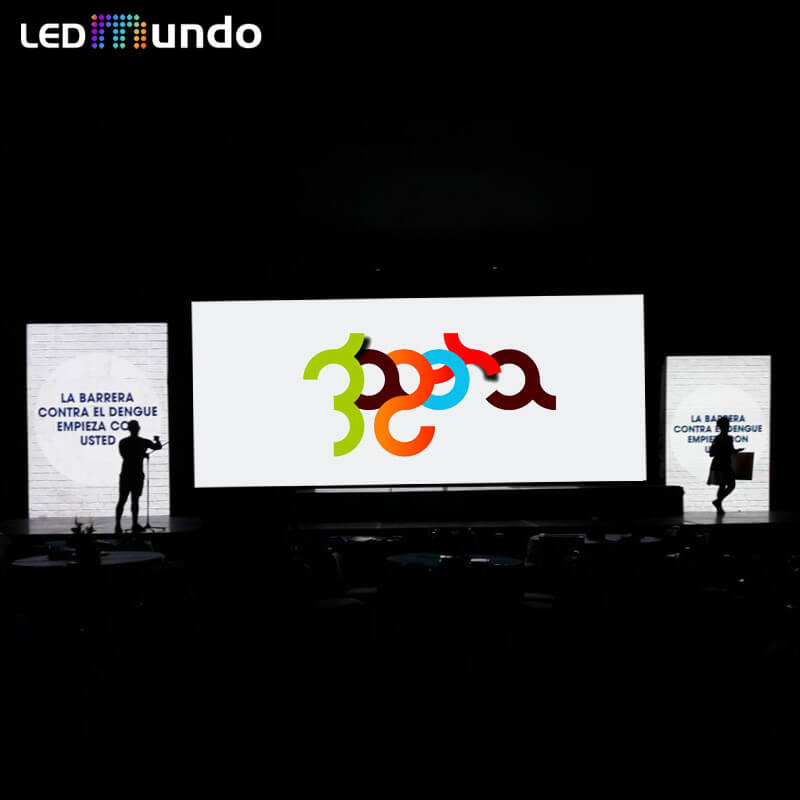

Applications:

For Plaza, Mansion wall and some other particular outdoor places. My enterprise, Transportation, Education, Shopping mall, other public places where need HD display and quick installation.
