Stage Outdoor 500 serie

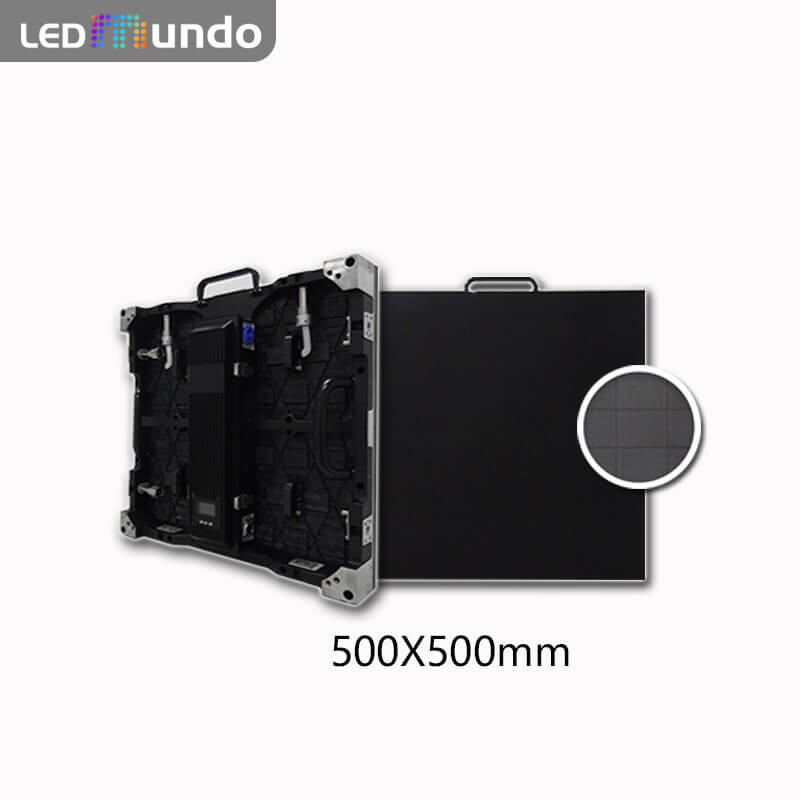

Cabinet Size: 500x500X75/500×1000×75mm
Pixel Pitch: 3.91/4.81/5.95/6.25/7.81mm
Brightness Intensity: 5000CD/m²
IP Rating (front/back): IP65
Max.Power Consumption: 750/630/850/970/780Wm²

GET A QUOTE
Parameters
Module Specifications
Part Number P3.91 P4.81 P5.95 P6.25 P7.81
Pixel Pitch 3.91mm 4.81mm 5.95mm 6.25mm 7.81mm
LED Configuration SMD2525 SMD2727 SMD2727 SMD2525 SMD3535
Resolution 64x64dot 52x52dot 48x48dot 40x40dot 32x32dot
Cabinet Specification
Cabinet Size 500x500x75/500x100x75mm 500x500x75/500x100x75mm 500x500x75/500x100x75mm 500x500x75/500x100x75mm 500x500x75/500x100x75mm
Cabinet Weight 7/12KG 7/12KG 7/12KG 7/12KG 7/12KG
Main Parameter
Pixel Density 65536dot/m² 262144dot/m² 123904dot/m² 65536dot/m² 43222dot/m²
Brightness Intensity ≥5000CD/m² ≥5000CD/m² ≥5000CD/m² ≥5000CD/m² ≥5000CD/m²
Viewing Angle (H/V) 140°/140° 140°/140° 140°/140° 140°/140° 140°/140°
View Distance >5m >6m >7m >8m >10m
Gray Scale 14bit 14bit 14bit 14bit 14bit
Display Scale 16.7M 16.7M 16.7M 16.7M 16.7M
Refresh Rate ≥1000Hz ≥1000Hz ≥1000Hz ≥1000Hz ≥1000Hz
Scanning Mode 16S 13S 8S 5S 4S
IP Rating(front/back) IP65 IP65 IP65 IP65 IP65
Max.Power Consumption 750W/m² 630W/m² 850W/m² 970W/m² 780W/m²
Aue.Power Consumption 250W/m² 210W/m² 280W/m² 324W/m² 260W/m²
Refresh Frequency ≥1920HZ ≥1920HZ ≥1920HZ ≥1920HZ ≥1920HZ
Gamma Correction -5.0~+5.0 -5.0~+5.0 -5.0~+5.0 -5.0~+5.0 -5.0~+5.0
Environmental OUTDOOR OUTDOOR OUTDOOR OUTDOOR OUTDOOR
Brightness Adjustment 0-100 levels adjustable
Control Mode Synchronous display with control PC by DVI
Support Input Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI
Operation Power AC100~240 50/60HZ
Operating Temperature -20℃~+50℃
Operating Humidity 10~95%RH
Operating Life 100,000hours

Advantages:



1. Intelligent control:
Seamless connection with high flatness and soft image.



2. Slim and light structure design for convenient assemble:
Super thin and light-weight cabinet, easy to install and transport, the space for the whole screen is greatly saved with thickness decrease.
Aluminum die-casting cabinet, automatic heat dissipation, and low power consumption.
Accurate and fast installation with buckled cabinet design for different applications efficiently.
Buckle fixing design makes fast installation and dismantlement with force balance for both stacking and hanging use.



3. Safe and reliable with excellent quality:
Professional and standard aviation plug with a high-quality guarantee.
High stability and reliability with an integrated circuit.
Water proof with IP65 protection level.


Applications:



For Plaza, Mansion wall and some other particular outdoor places. My enterprise, Transportation, Education, Shopping mall, other public places where need HD display and quick installation.
