Stage Outdoor 480 serie

Cabinet Size: 480x480X75mm
Pixel Pitch: 1.875/2/2.5/3/4mm
Brightness Intensity: ≥800CD/m² / ≥1200CD/m² / ≥1500CD/m²
IP Rating (front/back): IP30
Max.Power Consumption: 950/816/682/593W/448m²

GET A QUOTE

Parameters

Module Specifications
Part Number	P1.875	P2	P2.5	P3	P4
Pixel Pitch	1.875mm	2mm	2.5mm	3mm	4mm
LED Configuration	SMD	SMD	SMD	SMD	SMD3528

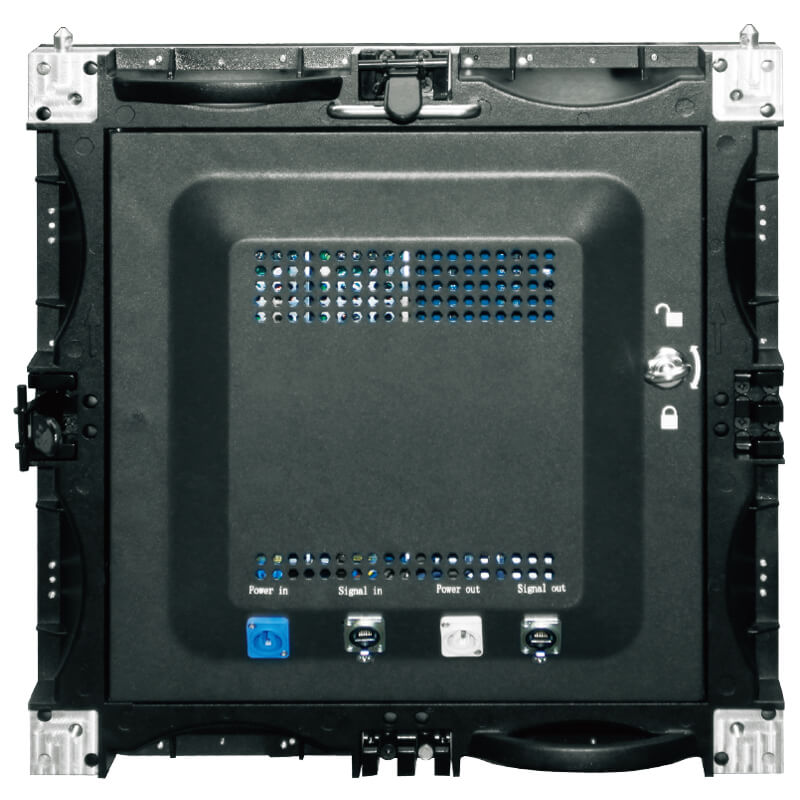

Cabinet Specification
Cabinet Size	480×480×75mm	480×480×75mm	480×480×75mm	480×480×75mm	480×480×75mm
Cabinet Weight	7KG	7KG	7KG	7KG	7KG
Main Parameter
Pixel Density	284444dot/m²	250000dot/m²	160000dot/m²	111111dot/m²	62500dot/m²
Brightness Intensity	≥800CD/m²	≥1200CD/m²	≥1200CD/m²	≥1500CD/m²	≥1500CD/m²
Viewing Angle (H/V)	140°/140°	140°/140°	120°/120°	120°/120°	120°/120°
View Distance	＞4m	＞5m	＞6m	＞7m	＞8m
Gray Scale	14bit	14bit	14bit	14bit	14bit
Display Scale	16.7M	16.7M	16.7M	16.7M	16.7M
Refresh Rate	≥1000Hz	≥1000Hz	≥1000Hz	≥1000Hz	≥1000Hz
Scanning Mode	22S	16S	13S	11S	10S
IP Rating(front/back)	IP30	IP30	IP30	IP30	IP30
Max.Power Consumption	950W/m²	816W/m²	682W/m²	593W/m²	448W/m²
Refresh Frequency	≥1920HZ	≥1920HZ	≥1920HZ	≥1920HZ	≥1920HZ
Gamma Correction	-5.0~+5.0	-5.0~+5.0	-5.0~+5.0	-5.0~+5.0	-5.0~+5.0
Environmental	INDOOR	INDOOR	INDOOR	INDOOR	INDOOR
Brightness Adjustment	0-100 levels adjustable
Control Mode	Synchronous display with control PC by DVI
Support Input	Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI
Operation Power	AC100~240 50/60HZ
Operating Temperature	-20℃~+50℃
Operating Humidity	10~95% RH
Operating Life	100,000hours

Advantages:

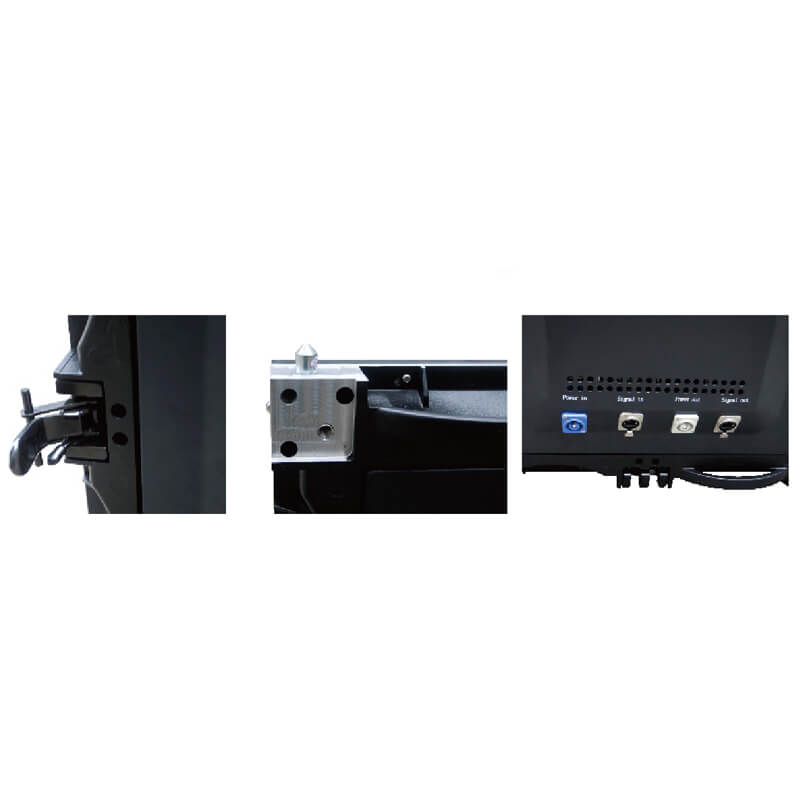

1. Thin and Light Cabinet:
Simple, ultra-thin and light design, easy to install and transport fanless, zero noise, low power consumption, automatic heat dissipation

2. High Definition and Exquisite Image:
Small-pitch series obtain high contrast and high grayscale, It can realize the HD and exquisite image.
Supporting point-to-point correction, to ensure the color and brightness consistency.
Exquisite color, clear and natural image with excellent RGB gray scale processing.

3. Low Consumption Energy Saving:
4.2V voltage design, low power consumption, energy-saving, green and environmental protection.

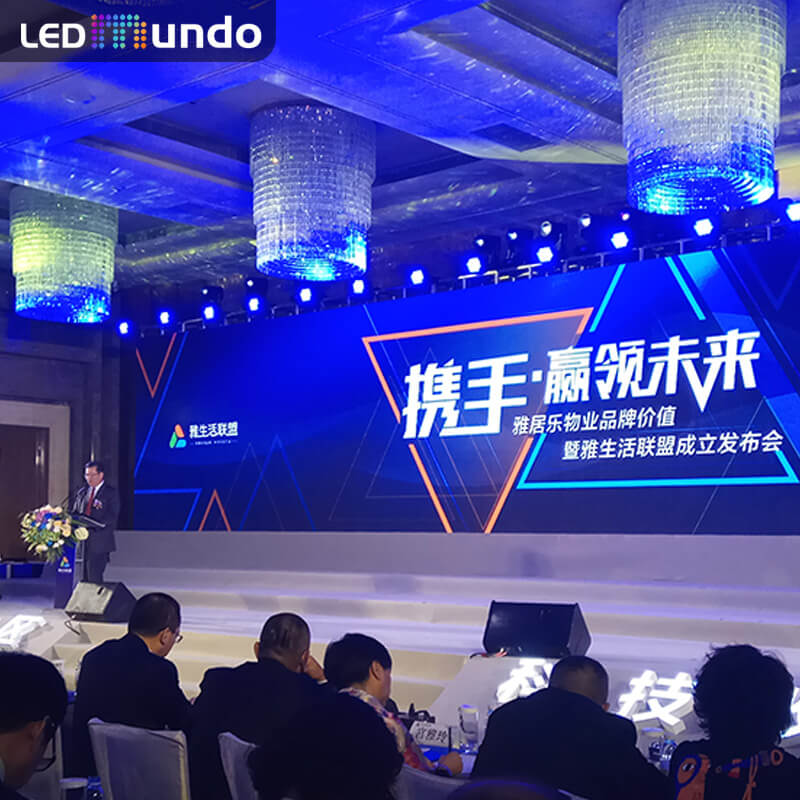

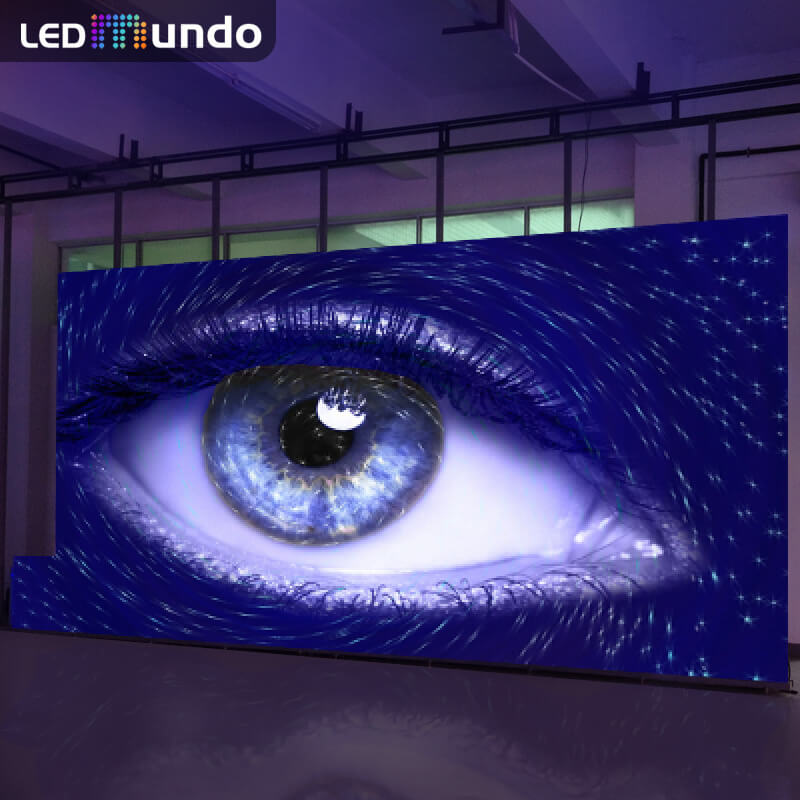

Applications:

Dispatching Center, Control Command Center, Monitoring Center, Conference Video Center, Information Center,Demonstration Center, Studio Center and so on.
