Outdoor LED Display

Cabinet Size: 576*576*80mm/768*768*80mm/800*800*80mm/960*960*80mm
Pixel Pitch: P3/P4/5/6/8/10mm
Brightness: ≥5000nits/≥5500nits/≥7000nits
IP Rating (front/back): IP65/IP54
(Max/Ave) Consumption: 1400/460 W/m²/950/310W/m²/950/310W/m²

GET A QUOTE
Parameters
Module Specifications
Part Number P3 P4 P5 P6 P8 P10
Pixel Pitch 3mm 4mm 5mm 6mm 8mm 10mm
Module size 192*192mm 256*128mm 160*160mm 192*192mm 256*128mm 160*160mm
Resolution 64*64dot 64*32dot 32*32dot 32*32dot 32*16dot 16*16dot
LED Configuration SMD SMD SMD SMD SMD SMD

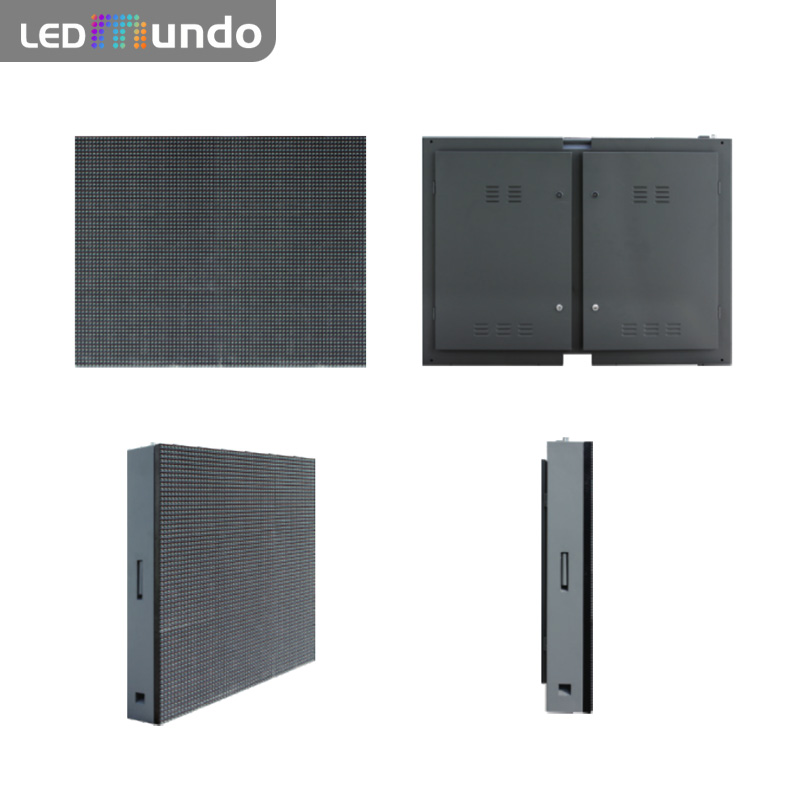

Cabinet Specification
Cabinet Size 576*576*80mm 768*768*80mm 800*800*80mm 768*768*80mm 768*768*80mm 960*960*80mm
Resolution 192*192dot 192*192dot 160*160dot 128*128dot 96*96dot 96*96dot
Material Waterproof cabinet
Cabinet Weight 35kg 42kg 45kg 42kg 42kg 50kg
Main Parameter
Pixel Density 111111dot/m² 62500dot/m² 40000dot/m² 27777dot/m² 15625dot/m² 10000dot/m²
Brightness ≥5000nits ≥5000nits ≥5000nits ≥5000nits ≥5500nits ≥7000nits
Gray Scale 14bit 14bit 14bit 14bit 14bit 14bit
Refresh Rate ≥1000Hz ≥1000Hz ≥1000Hz ≥1000Hz ≥1000Hz ≥1000Hz
Scanning 16S 8S 8S 8S 4S 2S
IP Rating(front/back) IP65/IP54 IP65/IP54 IP65/IP54 IP65/IP54 IP65/IP54 IP65/IP54
(Max/Aue).Power Consumption 1800/560W/m² 1400/460W/m² 950/310W/m² 660/220W/m² 740/240W/m² 950/310W/m²
Operating Environment OUTDOOR OUTDOOR OUTDOOR OUTDOOR OUTDOOR OUTDOOR

Advantages:



1. Super Wide Viewing Angle With Exquisite Image:
With the best LED industrial waterproof and ultraviolet-proof SMD 3 in 1 technology to get a super-wide viewing angle and abetter surface flatness and stability. when the screen is used RGB deep gray processing to show colorful and exquisite images supporting point-to-point correction function, ensure the consistency of the color and the brightness in the process of using.



2. Good Heat Dissipation, Easy Installation:
Inner fixed reinforcement plate, tensile and shockproof, auto heat dissipation, make the life span last over ten years.
Accurate、Quick、 flexible installation, can effectively apply to different situations.



3. High IP Level Safety and Stability:
With the protection rating of IP65, Keep it safe from any bad weather.
With the professional aviation plug as the connectors to ensure the quality.
With the high-quality raw material、 mature craft and large scale production, the quality guaranteed.



Applications:

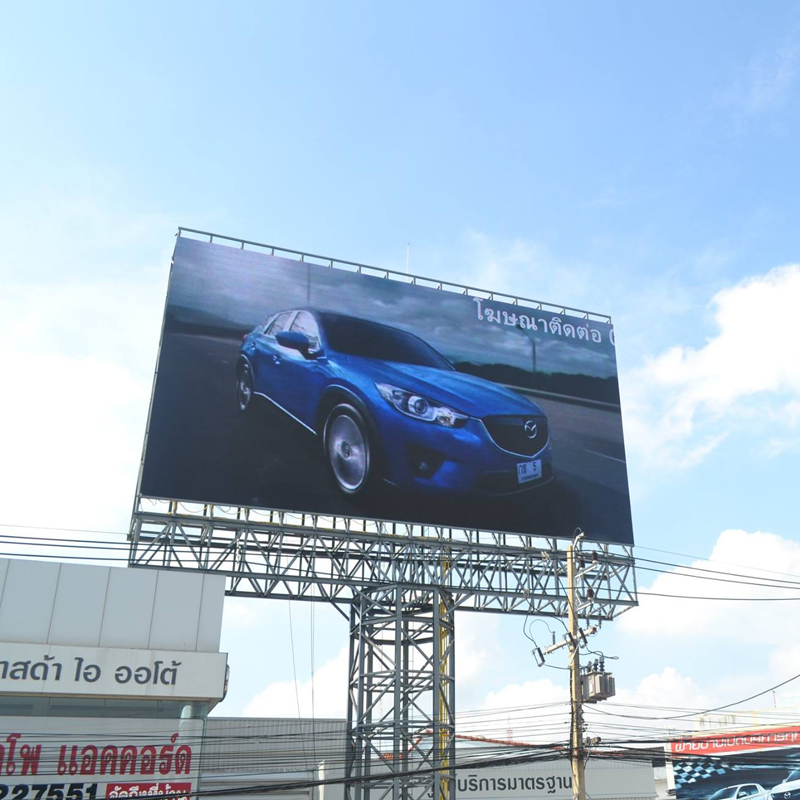

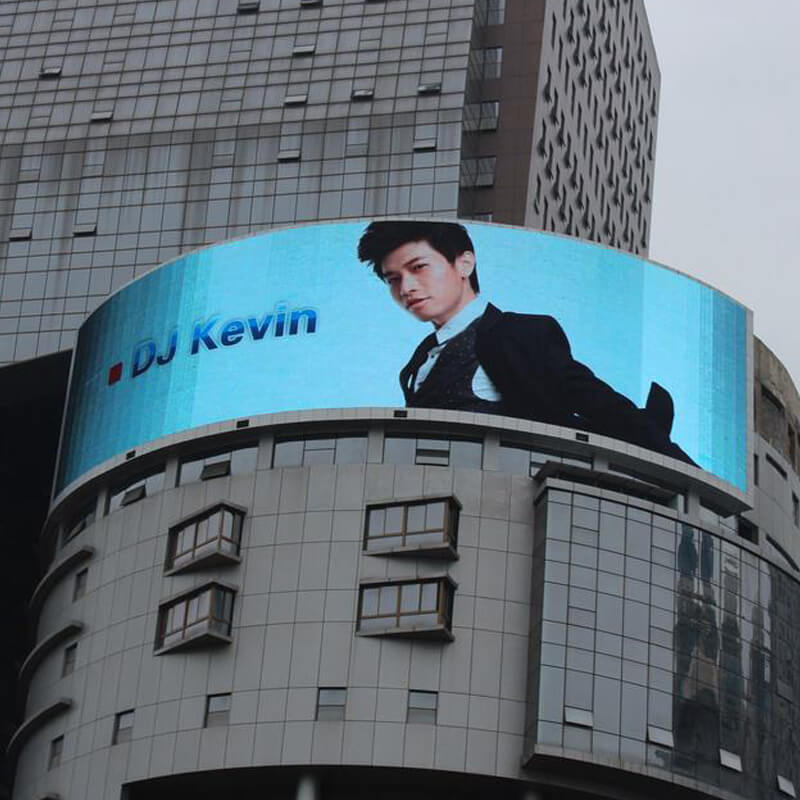

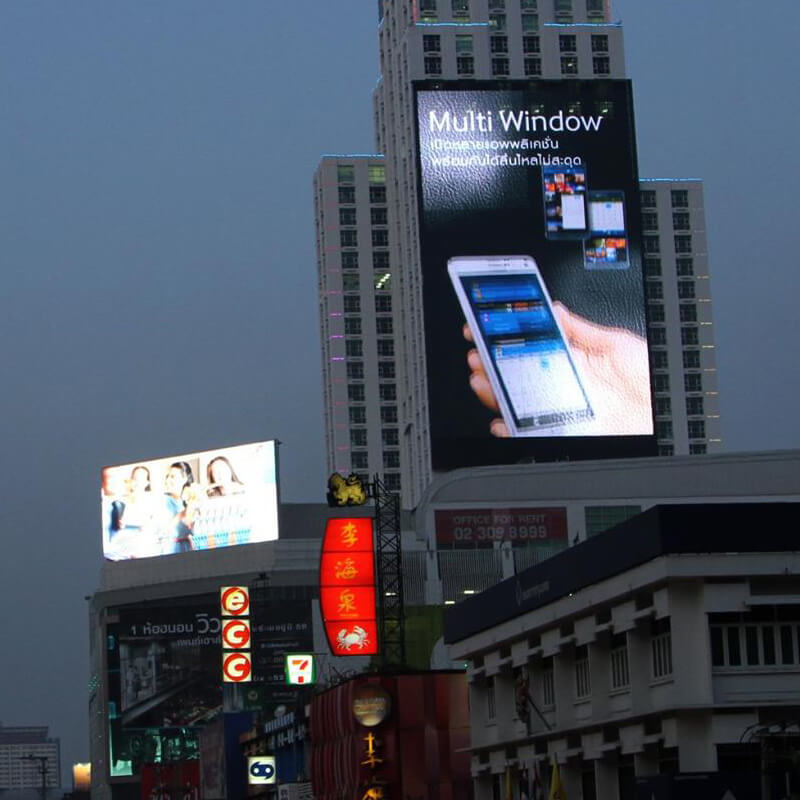

Application for Outdoor advertising, municipal engineering, theme park, gymnasium, large exhibition hall, etc.
