Indoor HD LED Display

Pixel Pitch: 2/2.5/34/5/6/8

Cabinet Size: 960X960X80mm

IP Rating: IP30

Brightness Intensity: 800/1100/2000CD/m²

Ave.Power Consumption: 223/160W/m²

GET A QUOTE

Parameters

Module Specifications
Part Number	P2	P2.5	P3	P4	P5	P6/td>	P8
Pixel Pitch	2mm	2.5mm	3mm	4mm	5mm	6mm	8mm
Module size	320X160mm	320X160mm	320X160mm	320X160mm	320X160mm	320X160mm	320X160mm
LED Configuration	SMD	SMD	SMD	SMD	SMD	SMD	SMD
Cabinet Specifications
Cabinet Size	960X960X80mm	960X960X80mm	960X960X80mm	960X960X80mm	960X960X80mm	960X960X80mm	960X960X80mm
Cabinet Weight	35kg	35kg	35kg	35kg	35kg	35kg	35kg
Main Parameter
Pixel Density	250000dot/m²	160000dot/m²	111111dot/m²	62500dot/m²	40000dot/m²	27777dot/m²	15625dot/m²
Brightness Intensity	≥800CD/m²	≥1100CD/m²	≥1100CD/m²	≥2000CD/m²	≥2000CD/m²	≥2000CD/m²	≥2000CD/m²
IP Rating	IP30	IP30	IP30	IP30	IP30	IP30	IP30
Viewing Angle	120°	120°	120°	120°	120°	120°	120°
View Distance	＞2m	＞2.5m	＞3m	＞4m	＞5m	＞6m	＞6m
Gray Scale	13bit	13bit	13bit	13bit	13bit	13bit	13bit
Display Scale	16.7M	16.7M	16.7M	16.7M	16.7M	16.7M	16.7M
Max.Power Consumption	670W/m²	480W/m²	430W/m²	410W/m²	380W/m²	360W/m²	280W/m²
Ave.Power Consumption	223W/m²	160W/m²	160W/m²	160W/m²	160W/m²	160W/m²	160W/m²
Refresh Frequency	≥1200Hz	≥1200Hz	≥1200Hz	≥1200Hz	≥1200Hz	≥1200Hz	≥1200Hz
Operating Environment	INDOOR	INDOOR	INDOOR	INDOOR	INDOOR	INDOOR	INDOOR
Brightness Adjustment	0 – 100 levels adjustable
Control Mode	Synchronous display with control PC by DVI
Support Input	Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI
Operation Power	AC100/220V 50/60HZ
Operating Temperature	– 20℃~+50℃
Operating Humidity	10~90% RH
Operating Life	100,000hours

Advantages:

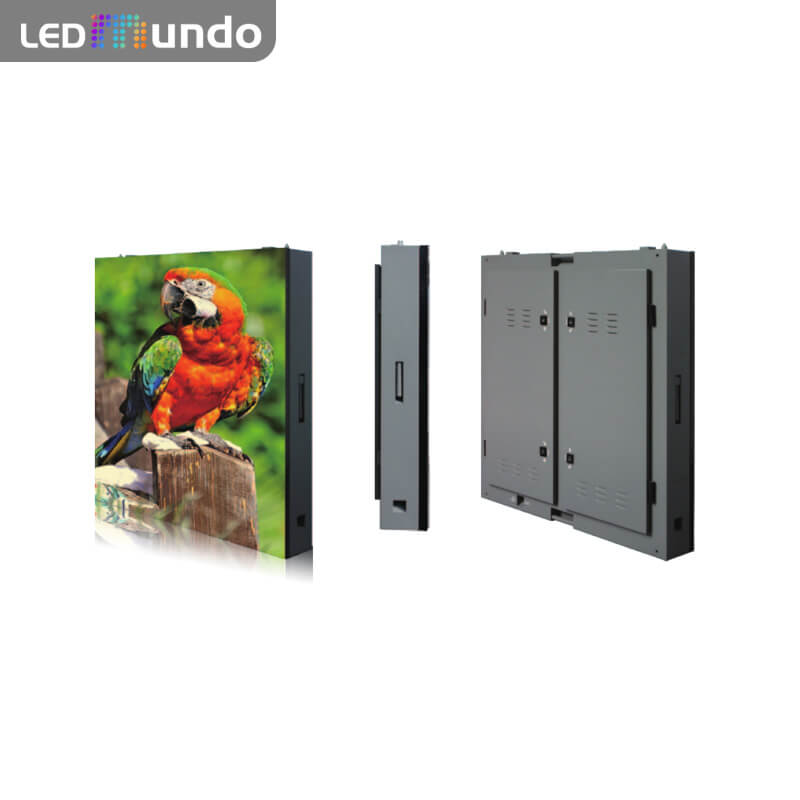

1. Thin and Light Cabinet
Simple, super thin and lightweight design, easy to install and transport. Without a fan, zero noise, low power consumption, automatic heat dissipation.

2. High definition and exquisite image
Small-pitch series obtain high contrast and high grayscale, It can realize the HD and exquisite image.Support pixel-to-pixel calibration, to ensure the color and brightness consistency. Exquisite color, clear and natural image with excellent RGB gray scale processing.

3. Seamless connection
Seamless connection with high flatness and soft image. Accurate and flexible installation, Buckle design for the sides to realize quickly install and disassemble. Professional and standard air plug with a high-quality guarantee.

4. Energy saving
4.2V voltage, low power consumption, energy-saving, and environment-friendly.

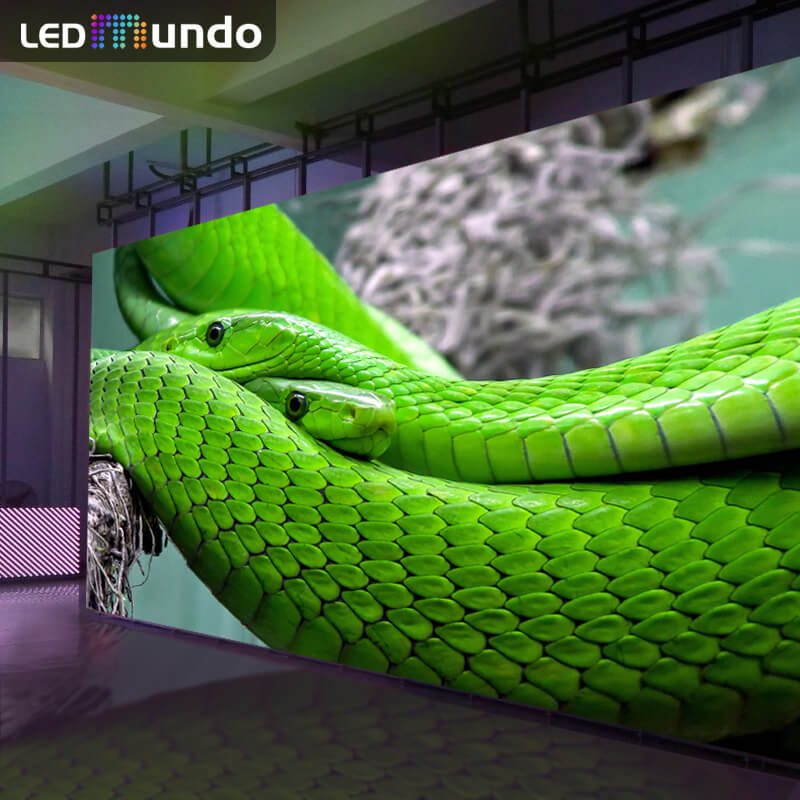

Application:

Dispatching center, control command center, monitoring center, conference video center, information center, demonstration center, studio center and so on.
