Cabinet Size: 500×500×75, 500×1000×75mm
Pixel Pitch: 3.91, 4.81, 5.21, 6.25, 7.81mm
IP Rating (front/back): IP65
Max.Power Consumption: 750, 630, 850, 970, 780W/m²
Ave.Power Consumption: 250, 210, 280, 324, 260W/m²
GET A QUOTE
| Module Specifications | |||||
| Pixel Pitch | 3.91mm | 4.81mm | 5.21mm | 6.25mm | 7.81mm |
| Pixel Density | 65536dot/m² | 262144dot/m² | 123904dot/m² | 65536dot/m² | 432222dot/m² |
| Resolution | 64x64dot | 52×52/dot | 48x48dot | 40x40dot | 32x32dot |
| LED Configuration | SMD2525 | SMD2727 | SMD2727 | SMD2525 | SMD3535 |
| Cabinet Specification | |||||
| Cabinet Size | 500x500X75mm | 500x500X75mm | 500x500X75mm | 500x500X75mm | 500x500X75mm |
| 500x1000X75mm | 500x1000X75mm | 500x1000X75mm | 500x1000X75mm | 500x1000X75mm | |
| Cabinet Weight | 7kg, 14kg | 7kg, 14kg | 7kg, 14kg | 7kg, 14kg | 7kg, 14kg |
| Main Parameter | |||||
| Gray Scale | 14bit | 14bit | 14bit | 14bit | 14bit |
| Display Scale | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M |
| Max.Power Consumption | 750W/m² | 630W/m² | 850W/m² | 970W/m² | 780W/m² |
| Aue.Power Consumption | 250W/m² | 210W/m² | 280W/m² | 320W/m² | 260W/m² |
| Refresh Frequency | ≥1920HZ | ≥1920HZ | ≥1920HZ | ≥1920HZ | ≥1920HZ |
| Environmental | OUTDOOR | OUTDOOR | OUTDOOR | OUTDOOR | OUTDOOR |
| Gamma Correction | -5.0~+5.0 | -5.0~+5.0 | -5.0~+5.0 | -5.0~+5.0 | -5.0~+5.0 |
| IP Rating(front/back) | IP65 | IP65 | IP65 | IP65 | IP65 |
| Scanning Mode | 16S | 13S | 8S | 5S | 4S |
| Brightness Intensity | ≥5000CD/m² | ≥5000CD/m² | ≥5000CD/m² | ≥5000CD/m² | ≥5000CD/m² |
| Viewing Angle (H/V) | 140°/140° | 140°/140° | 140°/140° | 140°/140° | 140°/140° |
| View Distance | >5m | >6m | >7m | >8m | >10m |
| Brightness Adjustment | 0 – 100 levels adjustable | ||||
| Control Mode | Synchronous display with control PC by DVI | ||||
| Support Input | Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI | ||||
| Operation Power | AC100/240V 50/60HZ | ||||
| Operating Temperature | -20℃~+50℃ | ||||
| Operating Humidity | 10~95%RH | ||||
| Operating Life | 100,000hours | ||||

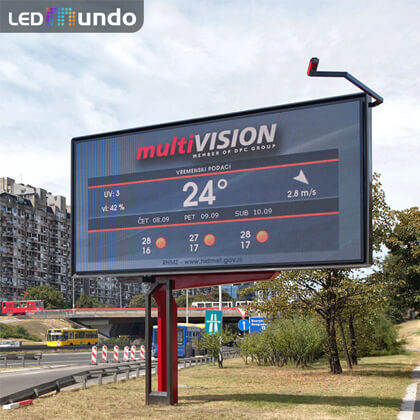

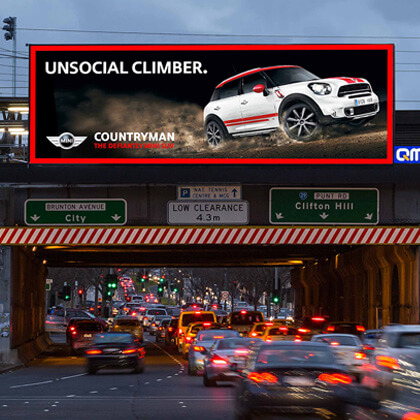

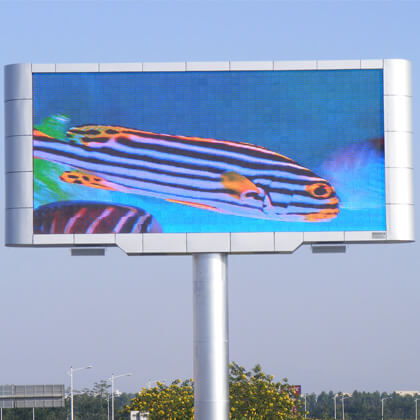

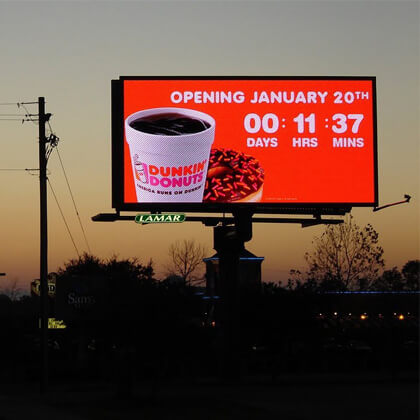

Application:
For Plaza, Mansion wall and some other particle outdoor places. Enterprise, Transportation, Education, Shopping mall, other public places which need HD display and quick installation.
Seamless connection:
Seamless connection with high flatness and soft image.
Advantages:
> Thin and light structure design for convenient assembly.
> Super thin and light-weight cabinet, easy to install and transport, the space for the whole screen is greatly saved with thickness decrease.
> Automatic heat dissipation, and low power consumption.
> High brightness and gray level as well as high refresh rate, HD exquisite image.
> HD and exquisite image with high contrast and grayscale, to obtain the high visual quality for commercial use.
> Support pixel-to-pixel calibration, to ensure the color and brightness consistency.
> Exquisite color, clear and natural image with excellent RGB gray scale processing.
Safe and reliable with excellent quality:
> High stability and reliability with an integrated circuit.
> Waterproof with IP65 protection level.
> Automatic Brightness Adjustment based on the environment brightness with a light sensor to save energy and reduce the operation cost, as well as increase audience orientation.
