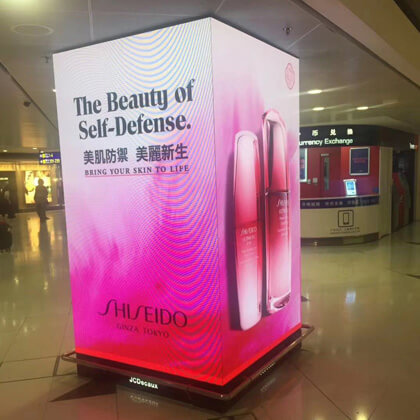

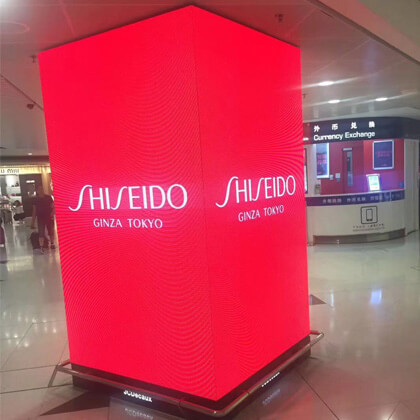

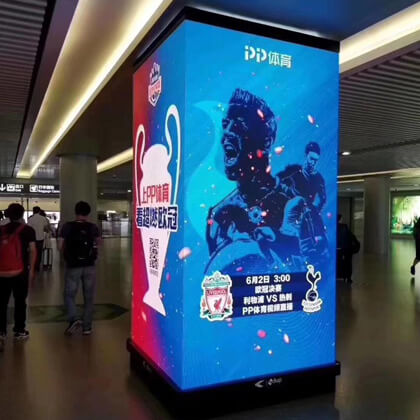

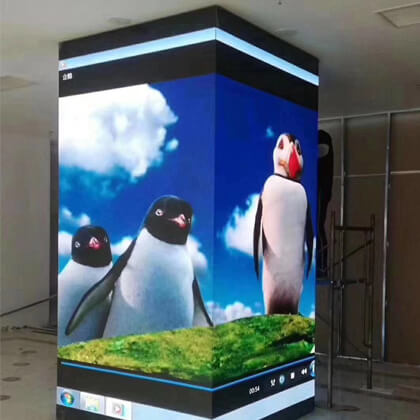

Cube Shape LED Display

Cabinet Size: 960×960×80mm
Pixel Pitch: 2/2.5/3/4/5/6/8mm
IP Rating (front/back): IP30
Max.Power Consumption: 670, 480, 430, 410, 380, 360, 280W/m²
Ave.Power Consumption: 223, 160W/m²

GET A QUOTE
Parameters
Module Specifications
Part Number P2 P2.5 P3 P4 P5 P6 P8
Pixel Pitch 2mm 2.5mm 3mm 4mm 5mm 6mm 8mm
Pixel Density 250000dot/m² 160000dot/m² 111111dot/m² 62500dot/m² 40000dot/m² 27777dot/m² 15625dot/m²
Module Size 320×160mm 320×160mm 320×160mm 320×160mm 320×160mm 320×160mm 320×160mm
LED Configuration SMD SMD SMD SMD SMD SMD SMD
Cabinet Specification
Cabinet Size 960x960x80mm 960x960x80mm 960x960x80mm 960x960x80mm 960x960x80mm 960x960x80mm 960x960x80mm
Cabinet Weight 35kg 35kg 35kg 35kg 35kg 35kg 35kg
Main Parameter
Gray Scale 13bit 13bit 13bit 13bit 13bit 13bit 13bit
Display Scale 16.7M 16.7M 16.7M 16.7M 16.7M 16.7M 16.7M
Max.Power Consumption 670W/m² 480W/m² 430W/m² 410W/m² 380W/m² 360W/m² 280W/m²
Aue.Power Consumption 223W/m² 160W/m² 160W/m² 160W/m² 160W/m² 160W/m² 160W/m²
Refresh Frequency ≥1200HZ ≥1200HZ ≥1200HZ ≥1200HZ ≥1200HZ ≥1200HZ ≥1200HZ
Environmental INDOOR INDOOR INDOOR INDOOR INDOOR INDOOR INDOOR
IP Rating(front/back) IP30 IP30 IP30 IP30 IP30 IP30 IP30
Maximum Brightness ≥800CD/m² ≥1100CD/m² ≥1100CD/m² ≥2000CD/m² ≥2000CD/m² ≥2000CD/m² ≥2000CD/m²
Viewing Angle (H/V) 120° 120° 120° 120° 120° 120° 120°
View Distance >2m >2.5m >3m >4m >5m >6m >6m
Brightness Adjustment 0 – 100 levels adjustable
Control Mode Synchronous display with control PC by DVI
Support Input Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI
Operation Power AC100/220V 50/60HZ
Operating Temperature -20℃~+50℃
Operating Humidity 10~90%RH
Operating Life 100,000hours

Application:
Dispatching center, control command center, monitoring center, conference video center, information center, demonstration center, studio center and so on.



Cube Shape Cabinet:
> Cube shape and lightweight design, easy to install and transport.
> Without a fan, zero noise, low power consumption, automatic heat dissipation.



Advantages:
Time and labor-saving.
The convenience of installation and maintenance, low cost.



High definition and exquisite image:
> Small-pitch series obtain high contrast and high grayscale, It can realize the HD and exquisite image.
> Support pixel-to-pixel calibration, to ensure the color and brightness consistency.
> Exquisite color, clear and natural image with excellent RGB gray scale processing.



Seamless connection:
> Seamless connection with high flatness and soft image.
> Accurate and flexible installation, Buckle design for the sides to realize quickly install and disassemble.
> Professional and standard air plug with a high-quality guarantee.



Energy saving:
4.2V voltage, low power consumption, energy-saving and environment-friendly.
