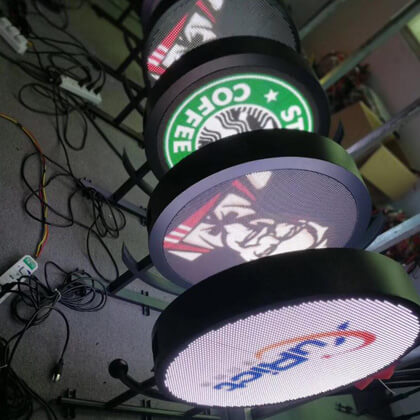

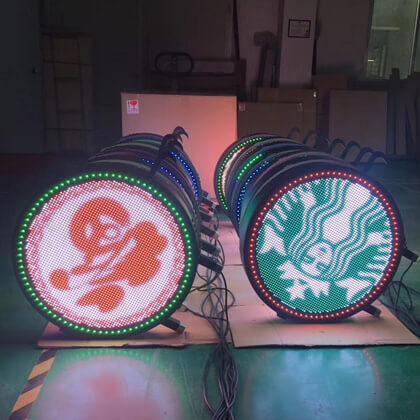

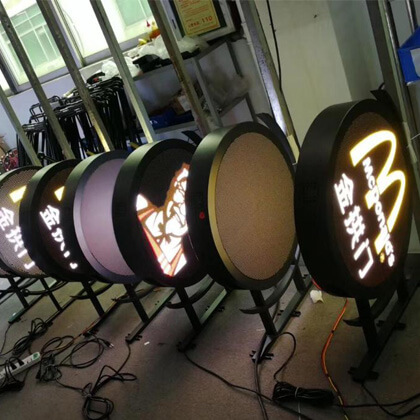

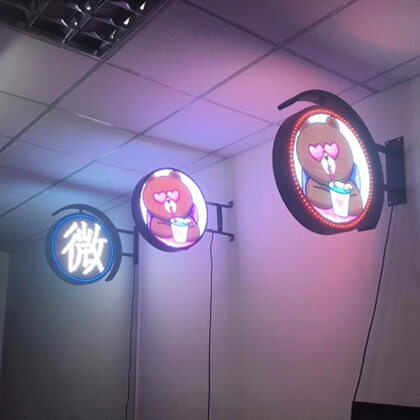

Circular LED Display
Cabinet Size: 512x512mm
Pixel Pitch: 4mm
IP Rating (front/back): IP34, IP65
Ave.Power Consumption: 150W
GET A QUOTE
GET A QUOTE
Parameters
| Module Specifications | |||
| Pixel Pitch | 4mm | 4mm | 8mm |
| Pixel Density | 62500dot/m² | 62500dot/m² | 40000dot/m² |
| Cabinet Specification | |||
| Cabinet Size | 512x512mm | 512x512mm | 512x512mm |
| Cabinet Weight | 12kg | 12kg | 12kg |
| Cabinet Resolution | 128x128dot | 128x128dot | 64x64dot |
| Main Parameter | |||
| Gray Scale | 14bit | 14bit | 14bit |
| Display Scale | 16.7M | 16.7M | 16.7M |
| Ave.Power Consumption | 150W | 150W | 150W |
| Refresh Frequency | ≥1920HZ | ≥1920HZ | ≥1920HZ |
| Environmental | INDOOR | INDOOR | INDOOR |
| IP Rating(front/back) | IP34 | IP34 | IP65 |
| Scanning Mode | 8S | 8S | 8S |
| Maximum Brightness | 2000CD/m² | 2000CD/m² | 2000CD/m² |
| Viewing Angle (H/V) | 120° | 120° | 120° |
| View Distance | >5m | >5m | >6m |
| Brightness Adjustment | 0 – 100 levels adjustable | ||
| Control Mode | Asynchronous Control | ||
| Support Input | Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI | ||
| Operation Power | AC100/240 50/60HZ | ||
| Operating Temperature | -20℃~+70℃ | ||
| Operating Humidity | 10~95%RH | ||
| Operating Life | 100,000hours | ||
Application:
Community, walking street, school, hospital, roadside, park, supermarket, parking lot, metro station, hotel, gas station, automobile 4s shop, tourist attraction, bus station, etc.
Intelligent control:
> HD-display,energy-saving.
> Wifi module, charging interface and GPS inside.
> Distant and large-scale control available.
> Smart monitor and equipped with smoke, humidity, temperature detectors.
> Interactive voice-and-video response access.
Advantages:
Time and labor-saving.
The convenience of installation and maintenance, low cost.
High IP level:
With front/back IP level 65/54.
Fashion design:
Super thin cabinet, lightweight, stylish shape with technological and art aesthetic feeling.
