500 Series Indoor Fix Installation LED Display

Cabinet Size: 500x500x75/500x1000x75mm
Pixel Pitch: 2.84/3.9/4.81/5.682/6.25mm
Brightness Intensity: ≥800, ≥1200, ≥1500CD/m²
IP Rating (front/back): IP30
Max.Power Consumption: 650, 716, 582, 493, 448W/m²
Ave.Power Consumption: 218, 238, 194, 164, 150W/m²

GET A QUOTE
Parameters
Module Specifications
Pixel Pitch 2.84mm 3.9mm 4.81mm 5.682mm 6.25mm
Resolution 88x88dot 64x64dot 52x52dot 44x44dot 40x40dot
LED Configuration SMD2020 SMD2020 SMD3528 SMD3528 SMD3528
Cabinet Specification
Cabinet Size 500x500x75mm 500x500x75mm 500x500x75mm 500x500x75mm 500x500x75mm
500x1000x75mm 500x1000x75mm 500x1000x75mm 500x1000x75mm 500x1000x75mm
Resolution 88x88dot 64x64dot 52x52dot 44x44dot 40x40dot
Cabinet Weight 7KG, 12KG 7KG, 12KG 7KG, 12KG 7KG, 12KG 7KG, 12KG
Main Parameter
Pixel Density 123904dot/m² 65536dot/m² 43222dot/m² 30973dot/m² 25600dot/m²
Brightness Intensity ≥800CD/m² 1200CD/m² 1200CD/m² 1500CD/m² 1500CD/m²
Gray Scale 14bit 14bit 14bit 14bit 14bit
Display Scale 16.7M 16.7M 16.7M 16.7M 16.7M
Refresh Frequency ≥1920HZ ≥1920HZ ≥1920HZ ≥1920HZ ≥1920HZ
Gamma Correction -5.0~+5.0 -5.0~+5.0 -5.0~+5.0 -5.0~+5.0 -5.0~+5.0
Environmental INDOOR INDOOR INDOOR INDOOR INDOOR
Scanning Mode 22S 16S 13S 11S 10S
IP Rating(front/back) IP30 IP30 IP30 IP30 IP30
Viewing Angle (H/V) 140°/140° 140°/140° 120°/120° 120°/120° 120°/120°
View Distance >4m >5m >6m >7m >8m
Max.Power Consumption 650W/m² 716W/m² 582W/m² 493W/m² 448W/m²
Aue.Power Consumption 218W/m² 238W/m² 194W/m² 164W/m² 150W/m²
Brightness Adjustment 0 – 100 levels adjustable
Control Mode Synchronous display with control PC by DVI
Support Input Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI
Operation Power AC100~240 50/60HZ
Operating Temperature – 20℃~+50℃
Operating Humidity 10~95% RH
Operating Life 100,000hours

Application:

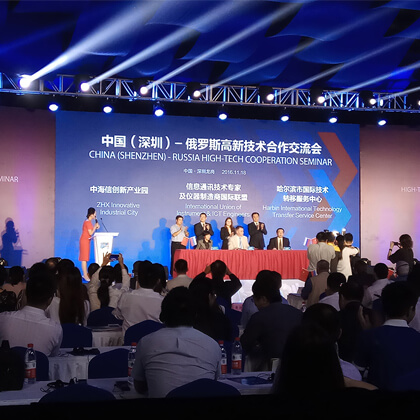

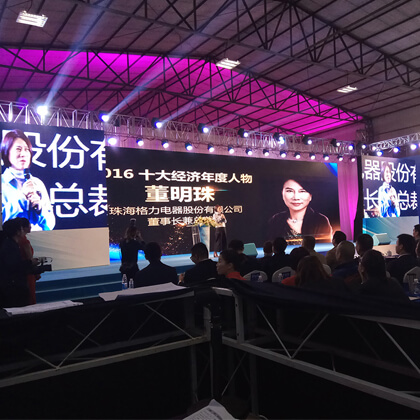

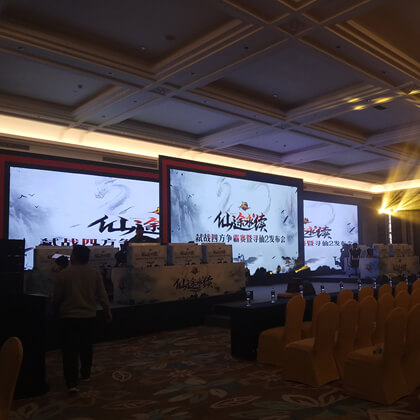

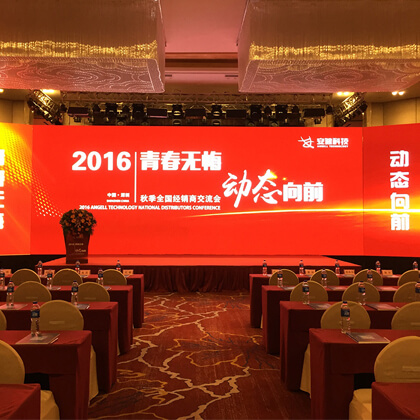

For Indoor stage, a Tv studio, Theme park, Airport, Station, Exhibition which needs HD display and quick installation. Widely used in large retail stores, Meeting room, etc



Seamless Connection:
Seamless connection with high flatness and soft image.



Advantages:
> Thin and light structure design for convenient assemble
> Super thin and light-weight cabinet, easy to install and transport, the space for the whole screen is greatly saved with thickness decrease.
> Automatic heat dissipation, and low power consumption.
> Accurate and fast installation with buckled cabinet design for different applications efficiently.



> High brightness and gray level as well as high refresh rate, HD exquisite image.
> HD and exquisite image with high contrast and grayscale, to obtain the high visual quality for commercial use.
> Support pixel-to-pixel calibration, to ensure the color and brightness consistency.
> Exquisite color, clear and natural image with excellent RGB gray scale processing.



> Safe and reliable with excellent quality
> High stability and reliability with an integrated circuit.
> Waterproof with IP65 protection level
> Automatic Brightness Adjustment based on the environment brightness with a light sensor to save energy and reduce the operation cost, as well as increase audience orientation.
